Product application: distribution protection, equipment protection, motor starting and protection

Number of poles: 3P, 4P

Applicable category: A

Rated current (In): 63A-630A

Rated operating voltage (Ue):AC400V

Rated insulation voltage (Ui): AC800V

Rated impulse withstand voltage (Uimp): 8kV

Tripping sensitivity (IΔn): 100mA, 300mA, 500mA

Rated residual markng and breaking capacity (IΔm): 12.5KA

Type of tripping unit: Thermomagnetic

Residual current protection release: electronic type

Rated residual current tripping characteristics: AC type

Release time: adjustable

Breaking ability:

AC400V, Icu=50kA, Ics=35kA

Conform to the standard: IEC/EN60947-2 GB/T14048.2

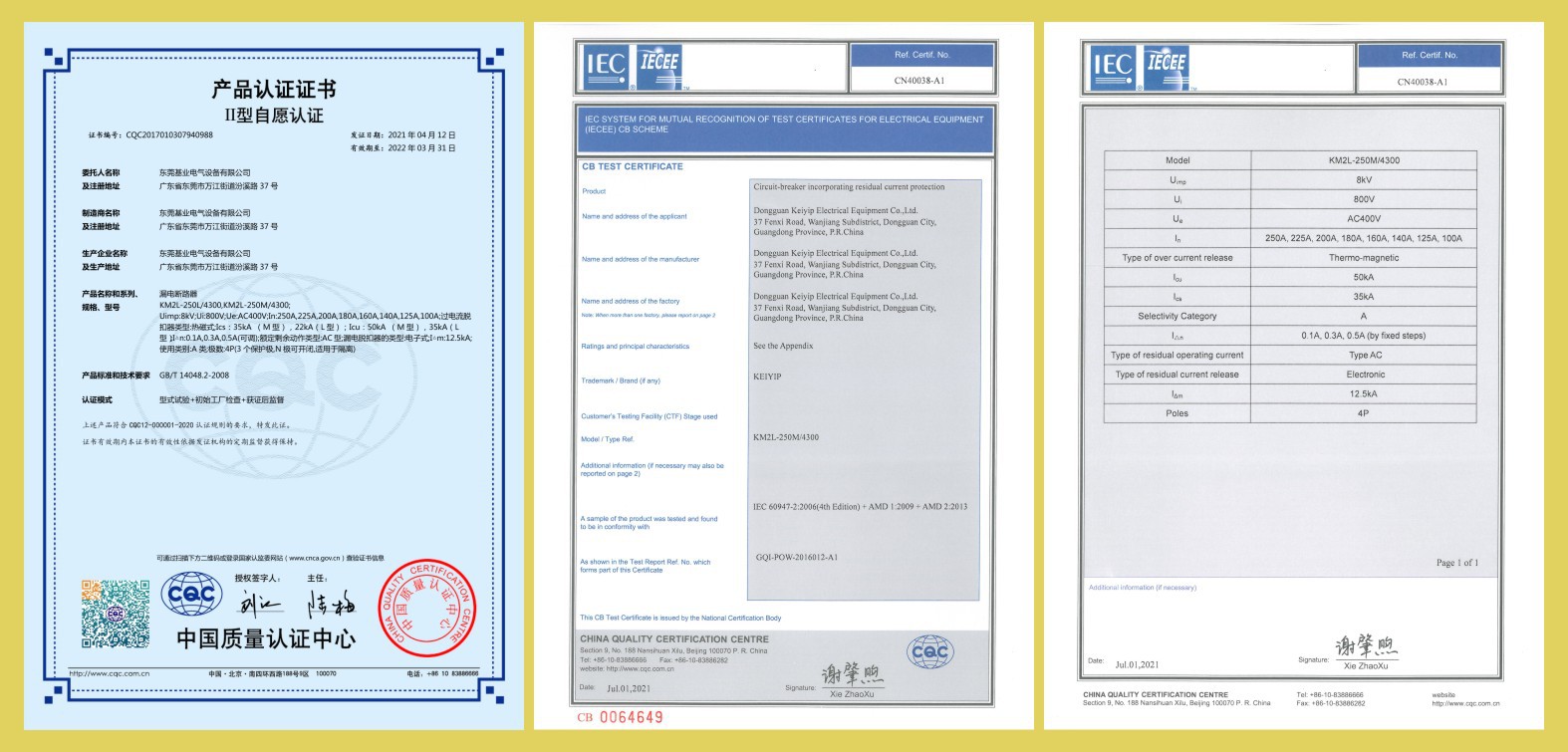

Certificate: CCC CE CB
